19. How to Wall Mount Your TV on the Wall: A DIY Guide

Safety Tips and Step-by-Step Instructions by Stanlee India

There is nothing quite like the look of a wall-mounted TV. They save space, give you a sleek style, and take any living room to the next level of a mini theatre!
At Stanlee India, where our mission is to elevate your entertainment experience with precision and performance at home, we want to show you how to wall-mount your TV safely, effectively, and in a professional manner.So gather your tools, roll up your sleeves, and do it yourself, without calling a technician.

Needed Materials

Before you start, you need to have the following materials:

Fitting TV wall mount bracket.
Drill machine with masonry/wood drill bits (the special drill bits will depend upon wall made from concrete, plaster or wood).
Measuring tape.
Stud-finder (if mounting a TV on a wooden or drywall).
Set of screwdrivers.
Level.
Pencil or chalk marker.
A friend (seriously!).
________________________________________

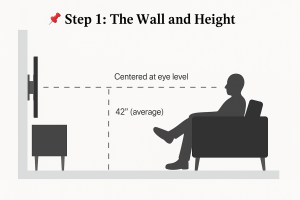

Step 1: The Wall and Height

Find a flat load bearing wall with limited glare from windows.
Place your TV at eye height, seating will determine perfect placement.
A general rule of thumb is that the centre point of the screen should be 42 – 48 inches off the floor.

Stanlee India’s Tip: If decision making is difficult and you are unsure where to put the TV, cut out a cardboard shape of your TV and tape it to the Align the television placement on the wall where it just seems natural and is the best for your viewing angle.
________________________________________

Step 2: Finding Wall Studs or Anchoring Points

If you are mounting your TV on a drywall, make sure you locate wall studs with a stud finder before drilling!
If you are mounting your TV on a concrete wall, use a stud finder or use masonry to locate solid sections of the wall.
Mark the wall studs or solid areas with a pencil so that you can clearly see them as reference points!
If you are using a drywall surface, do not drill into the hollow part of the wall without screws and anchors, you will damage your TV and the wall!
________________________________________

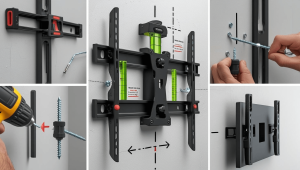

Step 3: Attach the Wall Bracket
With the bracket lined up with the studs, use a spirit level to level it up and mark where the drilling holes will need to be.

Then:

Utilize a drill with the appropriate bit for your wall type and carefully drill the holes where you made markings.
Insert wall plugs/anchors if necessary.
Fit the bracket to the wall screws as securely as you can.

Safety First: Check EVERY screw. An unloaded bracket could be very dangerous.
_______________________________________

Step 4: Fit the Mounting Plate to the TV
Most flat panel TVs have VESA mounting holes on the back.
With the mounting plate from your bracket kit lined up with the VESA mounting holes, bolt this to the back of the TV using the bolts that came with your bracket plate.
Be careful to not over-tighten these bolts as it is possible to damage the back of the TV.
________________________________

Step 5: Secure the TV to the Bracket
At this time it is advisable to get a friend or another family member to help you—this is always better with a second set of hands
Take care while lifting the TV and line the mounting plate up with the wall bracket.
Most modern mounts will click into place, while other mounts may use screws to secure the TV into the mount.
Once you have attached your TV to the bracket, give it a gentle shake to confirm stability and ensure everything is secure.
________________________________________

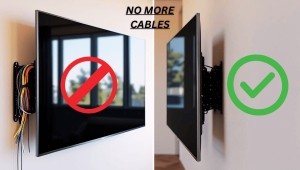

Step 6: Conceal the Wires (optional but advised)
A wall mounted TV always looks better from a visual perspective if the wires are concealed. You can:
Use painted cord/cable covers
Have wires drop directly in the wall with your own simple electrical knowledge if you feel confident
Have a TV unit or floating shelf below it
Stanlee India’s Pro Tip– Surge protectors are great for fixing power fluctuations. For our technicians, this is a must.
_______________________________________
Safety Checklist
Verify the TV is all the way latched
Re-check your screws and fittings
Plug your TV in and check all these connections
Lever up and angle to adjust if you went with a swivel mount
_____________________________________

You Did It! Now Relax and Enjoy!
Mounting your own TV could seem overwhelming, but with the right tools and advice it is easy.
You have not only saved the cost of installation, but you have made your space feel cleaner and more professional.
_____________________________________

Reasons Why Stanlee India Supports Mounting TVs on your own

At Stanlee India, we encourage homeowners to take a step back and feel empowered in their own homes.
Our team supply a variety of high quality TVs and entertainment options, so we truly enjoy seeing a homeowner make small worthwhile upgrades.
If you are still not sure or don’t have the right equipment; remember Stanlee India specialists are only a phone call away.
We provide professional installation and product support for you with every screen you buy from Stanlee India and provide peace of mind to help optimize your home with an install that looks awesome.
_______________________________________

Final Thoughts

If you have just purchased a brand-new LED TV, from Stanlee India or you are simply refreshing your living space, then it is a rewarding project to take on your own over a weekend by hanging your TV on the wall.
With attention to detail and safety, hanging your TV will provide a clean and visually stunning place for movie nights, cricket matches or gaming marathons.
As always, follow us for more DIY tips, smart tech solutions, and more from the entertainment world.
At Stanlee India we want you to not just watch TV, we want you to experience it!
